1.Product Description:
1)PROPSOLAR 5BB design module reduce cell series resistance and stress between cell interconnectors improves module reliability and module conversion efficiency.
2)High efficiency from Taiwan with more than 18.5%
3)Anti-reflective and anti-soiling surface reduces power loss from dirty and dust.
4)Excellent mechanical load resistance:Certified to withstand high wind loads(2400Pa) and snow
loads(5400Pa).
5)High salt and ammonia resistance
2.Reliable Quality:
1)Positive power tolerance:0+3%
2)100% EL double-inspection ensures modules are defects free
3)Modules binned by current to improve system performance
4)Potential Induced Degradation(PID) Resistant

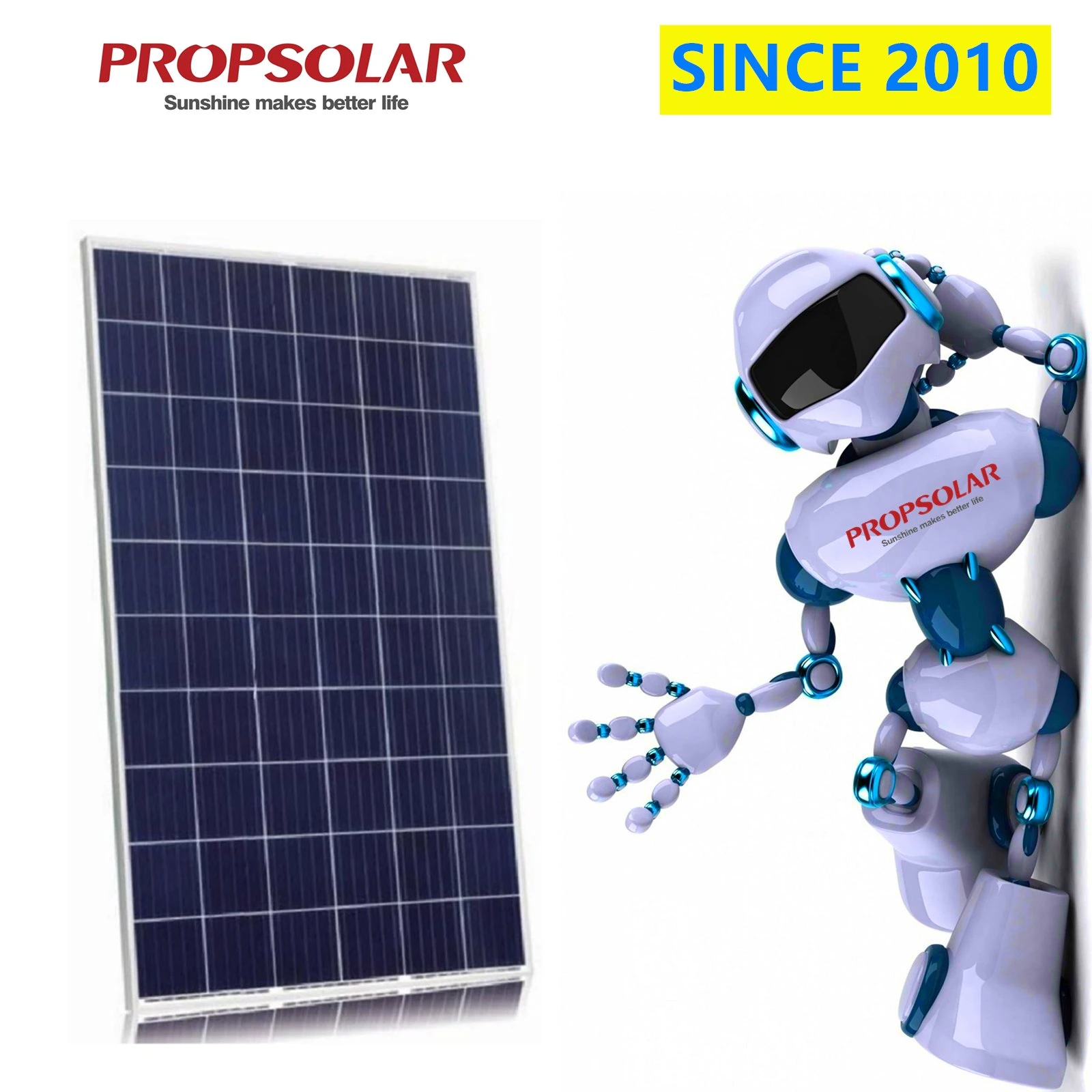

3.Product Images:
4.Electrical Data:

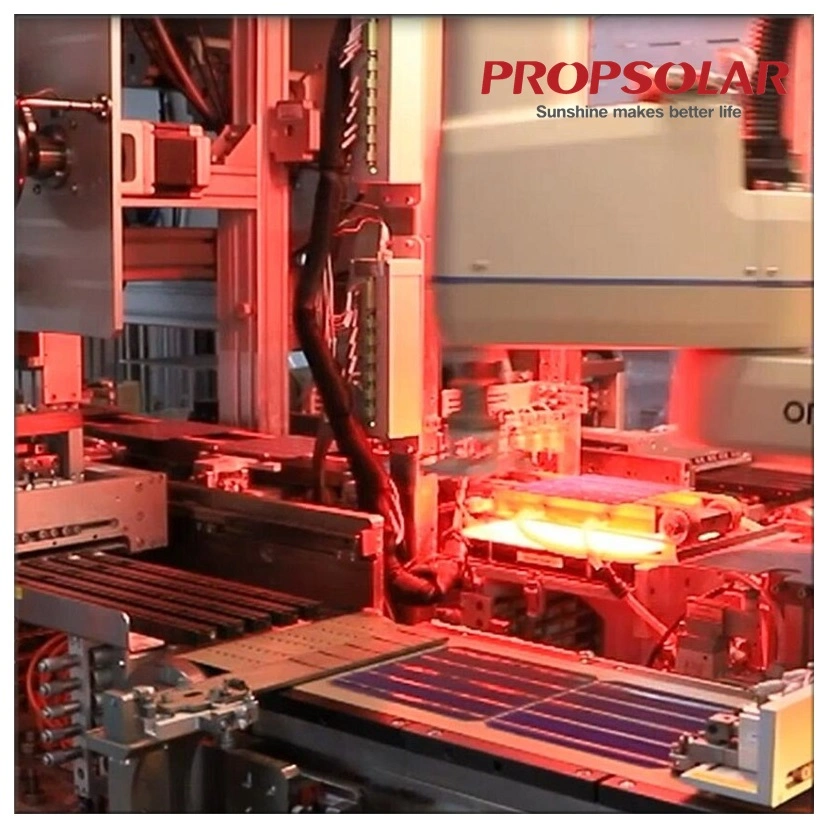

5.Production Flow:
6.Certifications(TUV IEC61215;IEC61730):
7.Project Reference:
8.Our Company:
Propsolar is the professional manufacturer of Photovoltaic (PV) modules,solar storage system,DC&AC solar water pump system.
1)PROPSOLAR 5BB design module reduce cell series resistance and stress between cell interconnectors improves module reliability and module conversion efficiency.
2)High efficiency from Taiwan with more than 18.5%
3)Anti-reflective and anti-soiling surface reduces power loss from dirty and dust.
4)Excellent mechanical load resistance:Certified to withstand high wind loads(2400Pa) and snow
loads(5400Pa).
5)High salt and ammonia resistance
2.Reliable Quality:
1)Positive power tolerance:0+3%
2)100% EL double-inspection ensures modules are defects free
3)Modules binned by current to improve system performance
4)Potential Induced Degradation(PID) Resistant
3.Product Images:
4.Electrical Data:
| Type | PS-P660265 | PS-P660270 | PS-P660275 | PS-P660280 | PS-P660285 |
| Rated Maximum Power at STC(W) | 265 | 270 | 275 | 280 | 285 |
| Open Circuit Voltage(Voc/V) | 37.7 | 37.9 | 38.1 | 38.2 | 38.3 |
| Maximum Power Voltage(Vmp/V) | 30.7 | 30.9 | 31.1 | 31.4 | 31.6 |
| Short Circuit Current(Isc/A) | 9.13 | 9.22 | 9.32 | 9.40 | 9.49 |
| Maximum Power Current(Imp/A) | 8.63 | 8.73 | 8.84 | 8.92 | 9.02 |
| Module Efficiency(%) | 16.2 | 16.5 | 16.9 | 17.2 | 17.5 |
| Power Tolerance(%) | 0+3% | ||||
| Temperature Coefficient of Isc | +0.059%/ºC | ||||
| Temperature Coefficient of Voc | -0.330%/ºC | ||||
| Temperature Coefficient of Pmax | -0.410%/ºC | ||||
| STC | Irradiance 1000W/m2,Cell Temperature 25ºC, Air Mass 1.5 | ||||
| Certification | CE, TUV(IEC61215,IEC61730) | ||||
| Mechanical Data | |
| Cell(mm) | Poly 156.75×156.75 |
| Weight(kg) | 17(approx) |
| Dimensions(L×W×H)(mm) | 1640*992*35 |
| No.of Cells | 60 |
| No.of Diodes | IP67,3 diodes 20A |
| Connector | MC4 |
| Packing Configuration | 30pcs per box |
| Working Conditions | |
| Maximum System Voltage | DC 1500V(IEC) |
| Operating Temperature | -40ºC/+85ºC |
| Maximum Static Load,Front(e.g,snow and wind) | 5400Pa |
| Maximum Static Load,Back(e.g,wind) | 2400Pa |
| NOCT | 45±2ºC |
| Application Class | Class A |
5.Production Flow:
6.Certifications(TUV IEC61215;IEC61730):
7.Project Reference:
8.Our Company:
Propsolar is the professional manufacturer of Photovoltaic (PV) modules,solar storage system,DC&AC solar water pump system.
We specialize in the development and utilization of new energy to provide one stop service and total solution to all global customers.
